智能交互平板
产品描述
规格参数
联系我们
如需了解有关更多智能交互平板产品信息或咨询 ODM/OEM服务，请通过 info@mysher.com 联系我们。
| Model | FC065YN | FC075YN | FC086YN |
|---|---|---|---|
 |
|
|
|
| Display Size (Inch) | 65" | 75" | 86" |
| Panel Type | IPS or VA | IPS or VA | IPS or VA |
| Backlight | Direct-lit LED | Direct-lit LED | Direct-lit LED |
| Resolution | Ultra HD 4K 3840x2160 | Ultra HD 4K 3840x2160 | Ultra HD 4K 3840x2160 |
| Aspect Ratio | 16:9 | 16:9 | 16:9 |
| Display Colors | 1.07 Billion | 1.07 Billion | 1.07 Billion |
| Color Depth | 8-bits | 8-bits | 8-bits |
| Brightness (typ) | 350 cd/m2 | 350 cd/m2 | 350 cd/m2 |
| Color Gamut (typ) | 72% NTSC | 72% NTSC | 72% NTSC |
| Contrast Ratio | 1200:1 | 1200:1 | 1200:1 |
| Response Time | 8ms | 8ms | 8ms |
| Viewing Angle | 178° | 178° | 178° |
| Panel Refresh Rate | 60Hz | 60Hz | 60Hz |
| Other Function | Low blue light | Low blue light | Low blue light |
| Touch | |||
| Touch Technology | Infrared | ||

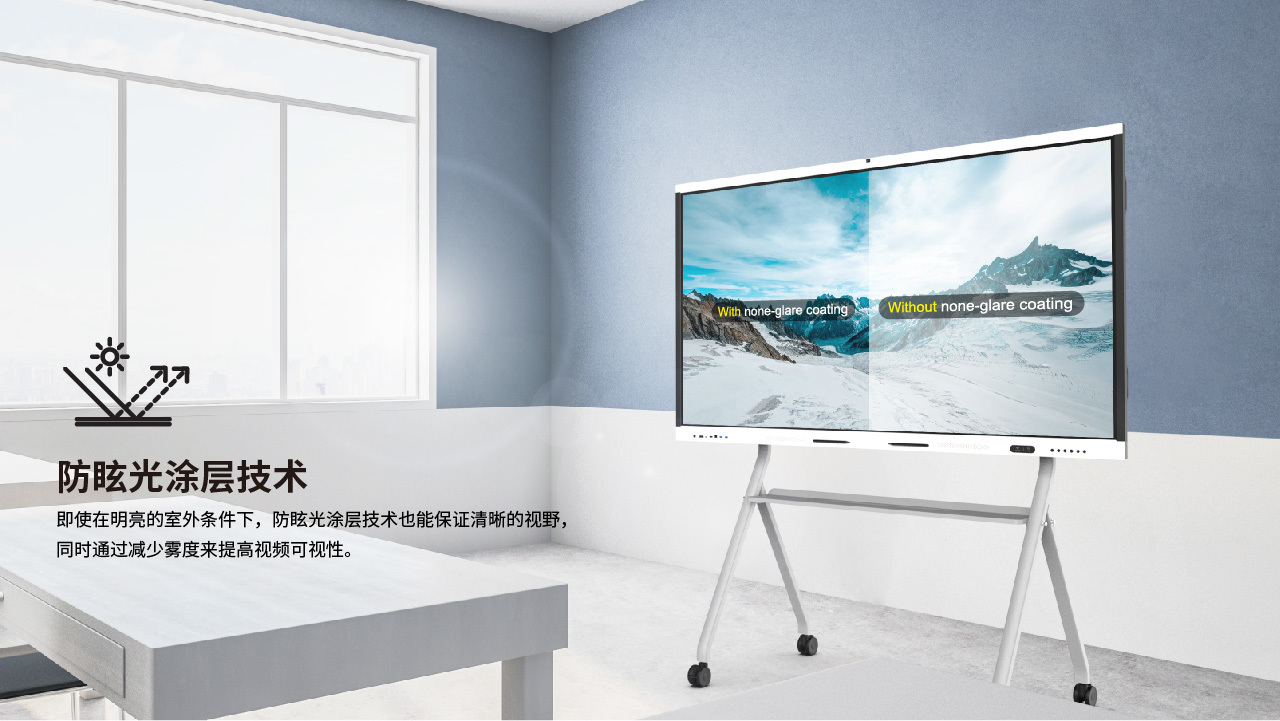

| Glass | Anti-Glare Glass | ||
| Touch Points | 20 Points in Android / 40 Points in Windows | ||

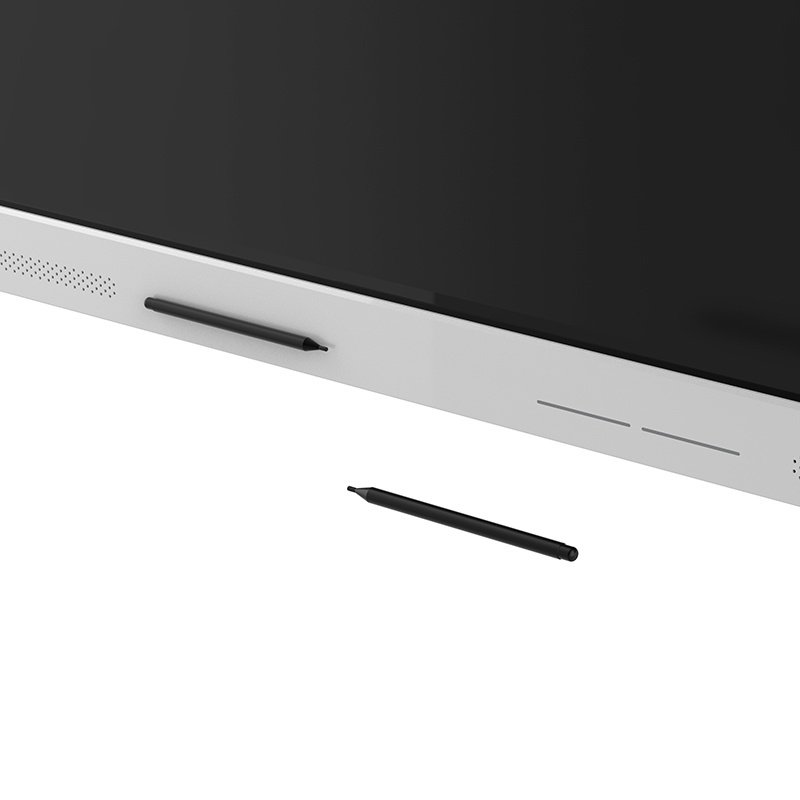

| Writing Tool | Stylus / Finger / Eraser | ||
| Whiteboard Writing Features | Pen Tip Writing / Tail End Erasing / Ink to Shape / Multiple Users Writing / Fingers Navigating | ||
| Camera / Speaker / Microphone | |||

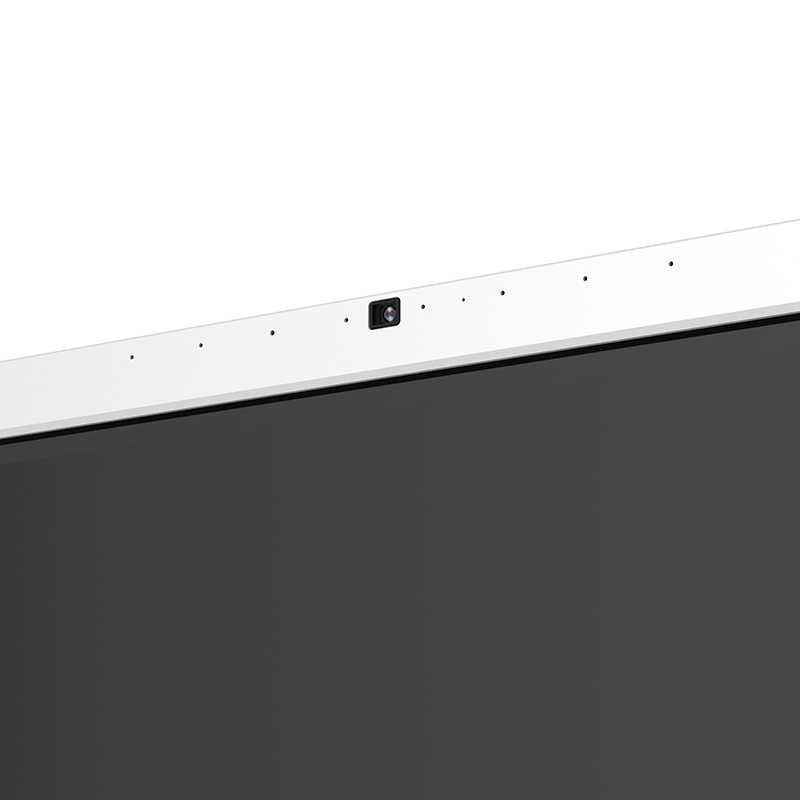

| Camera | Built-in a 4K Wide-Angle Camera | Built-in a 4K Wide-Angle Camera | Built-in a 4K Wide-Angle Camera |
| Camera Feature | Auto-Framing / Speaker-Tracking | Auto-Framing / Speaker-Tracking | Auto-Framing / Speaker-Tracking |
| Speaker | Built-in Speaker 15W x 2 (L/R) | Built-in Speaker 15W x 2 (L/R) | Built-in Speaker 15W x 2 (L/R) |
| Microphone | Built-in 8-Microphone Array | Built-in 8-Microphone Array | Built-in 8-Microphone Array |
| Computing | |||

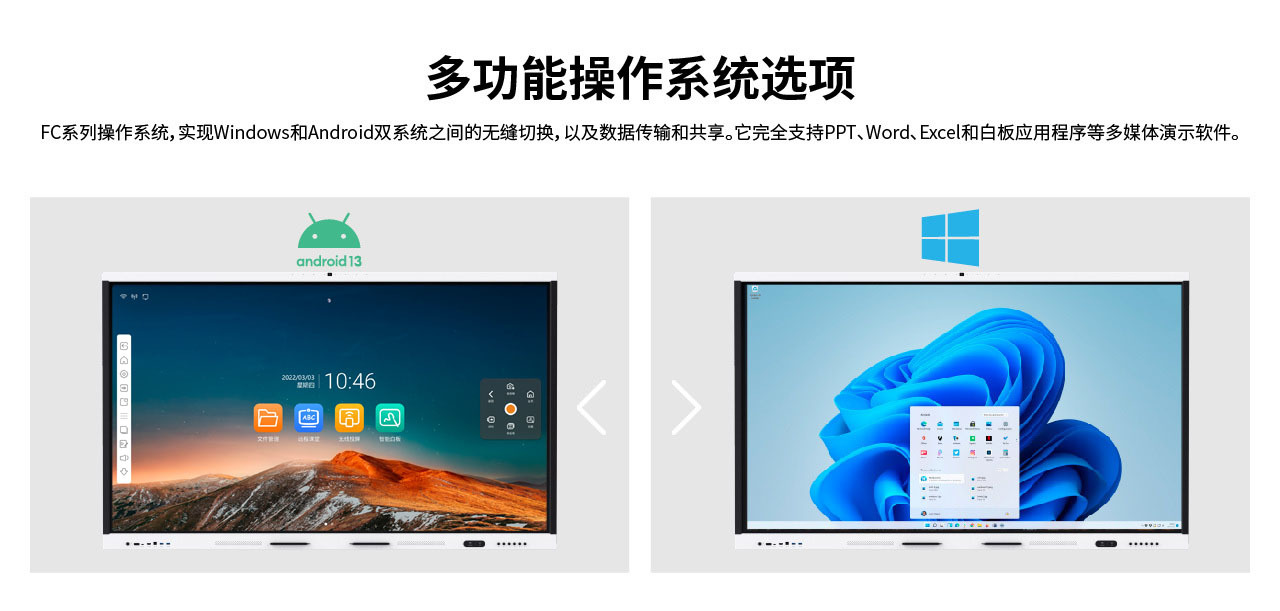

| Operation System | Android 13 | Android 13 | Android 13 |
| RAM | 4GB | 4GB | 4GB |
| ROM | 16GB | 16GB | 16GB |
| CPU | A55x4 | A55x4 | A55x4 |
| GPU | Mali G52 MP2 | Mali G52 MP2 | Mali G52 MP2 |
| Connectivity | |||

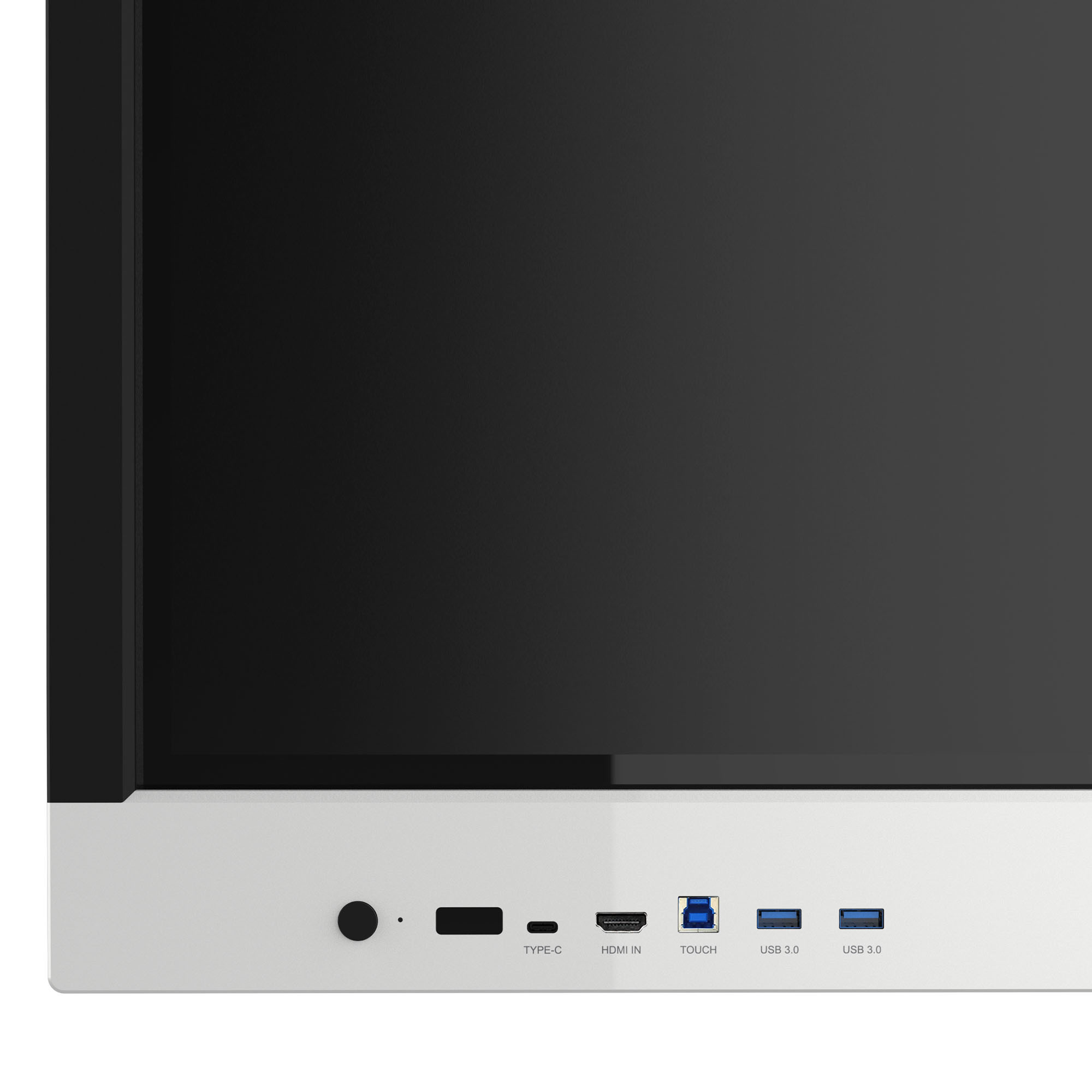

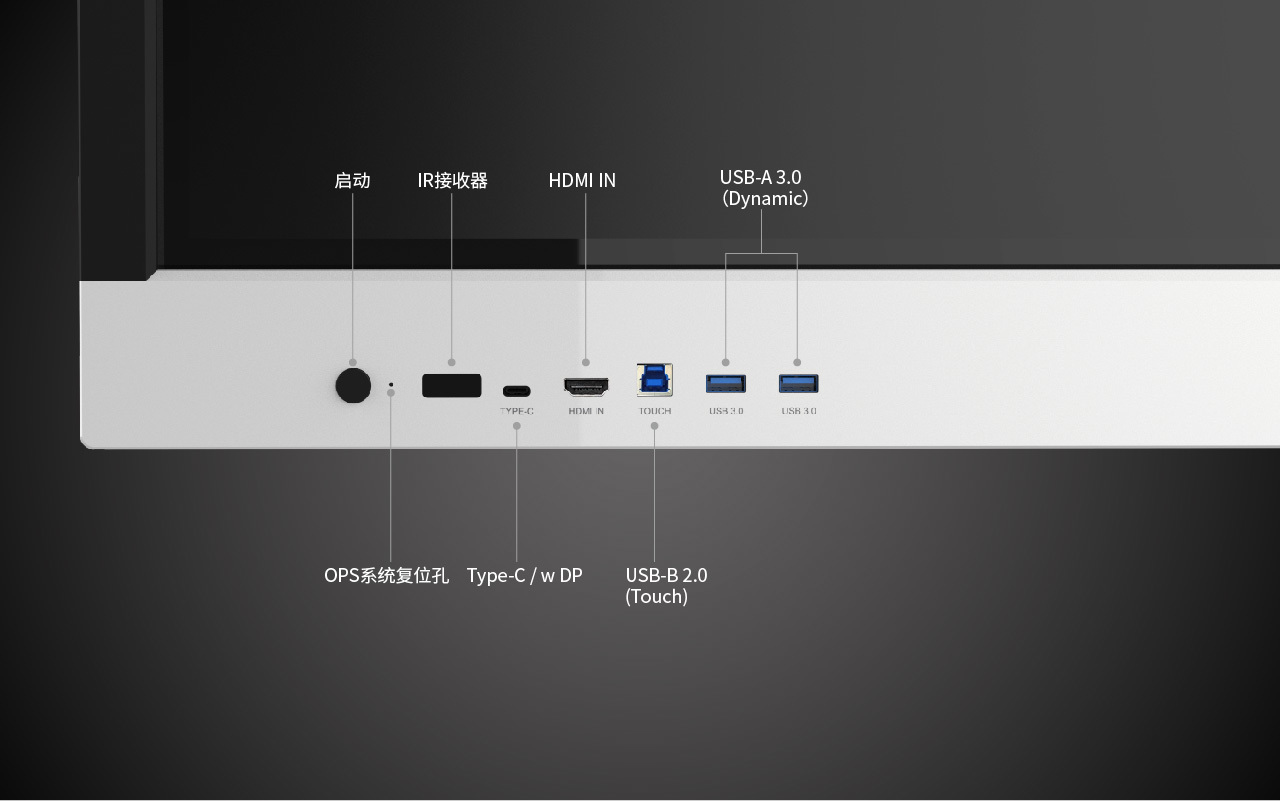

| Front-Panel (I/O) | HDMI In x 1, USB-B 2.0 (Touch) x 1, USB-A 3.0 (Dynamic) x 2, USB-C x 1, IR Receiver x 1 | ||

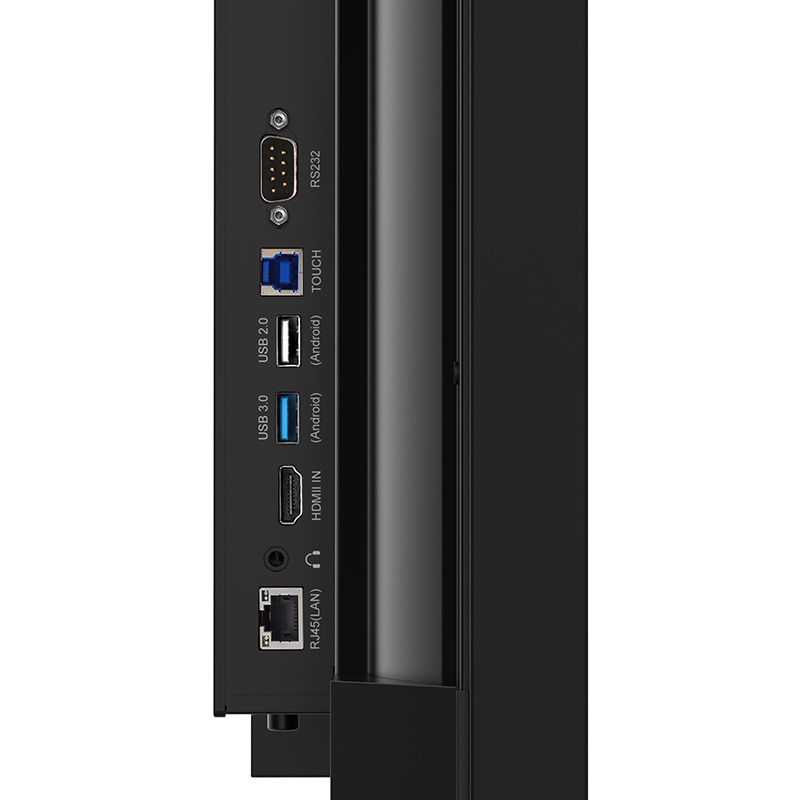

| Rear-Panel (I/O) | USB-B For Touch x 1（Type-B 2.0）/ USB-A （Android）2.0 x 1 / USB-A （Android）3.0 x 1 / HDMI In x 1/RS232 x1/ Eraphone X 1 / RJ45 In x 1 100M / Audio Out x 1 / Audio Out x 1(AUX) / Audio In x 2 / HDMI Out x 1（Optional） | ||
| Wi-Fi | Dual-board Wi-Fi 5 | ||
| Bluetooth | Bluetooth 5.0 | ||
| Power | |||
| Power Supply | AC 100-240V, 50/60Hz | AC 100-240V, 50/60Hz | AC 100-240V, 50/60Hz |
| Max. Power Consumption | 420W (65”) | 450W (75”) | 550W (86”) |
| Standby | ≤ 0.5W | ≤ 0.5W | ≤ 0.5W |
| Physical Dimension | |||
| Display Dimension (W x D x H) | 1504 x 118 x 925mm | 1726x 118 x 1050mm | 1972 x 118 x 1190mm |
