MS4C375363JXG

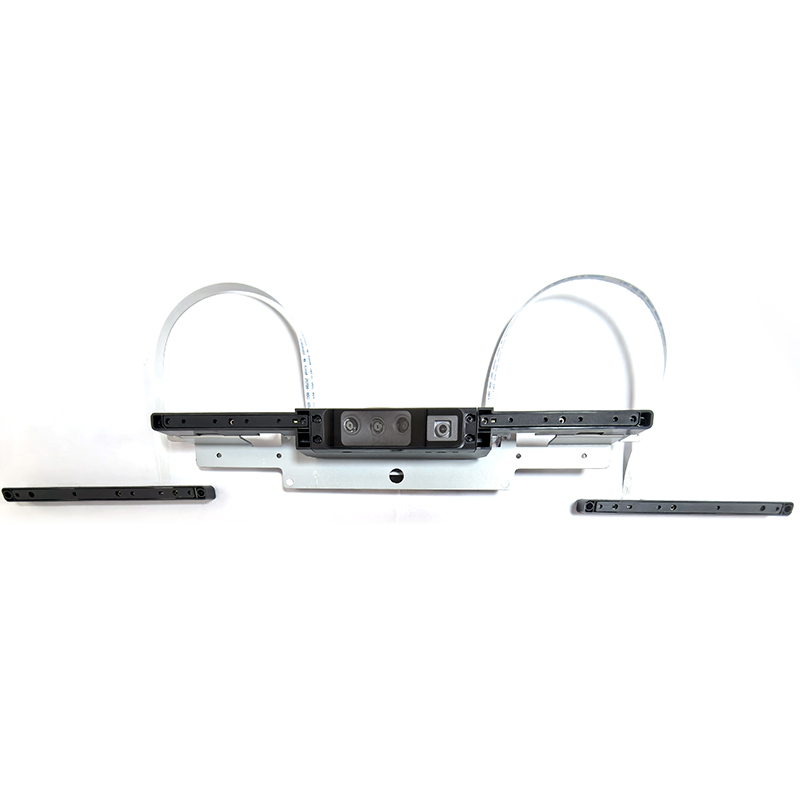

Quad-lens AI camera module for IFPD

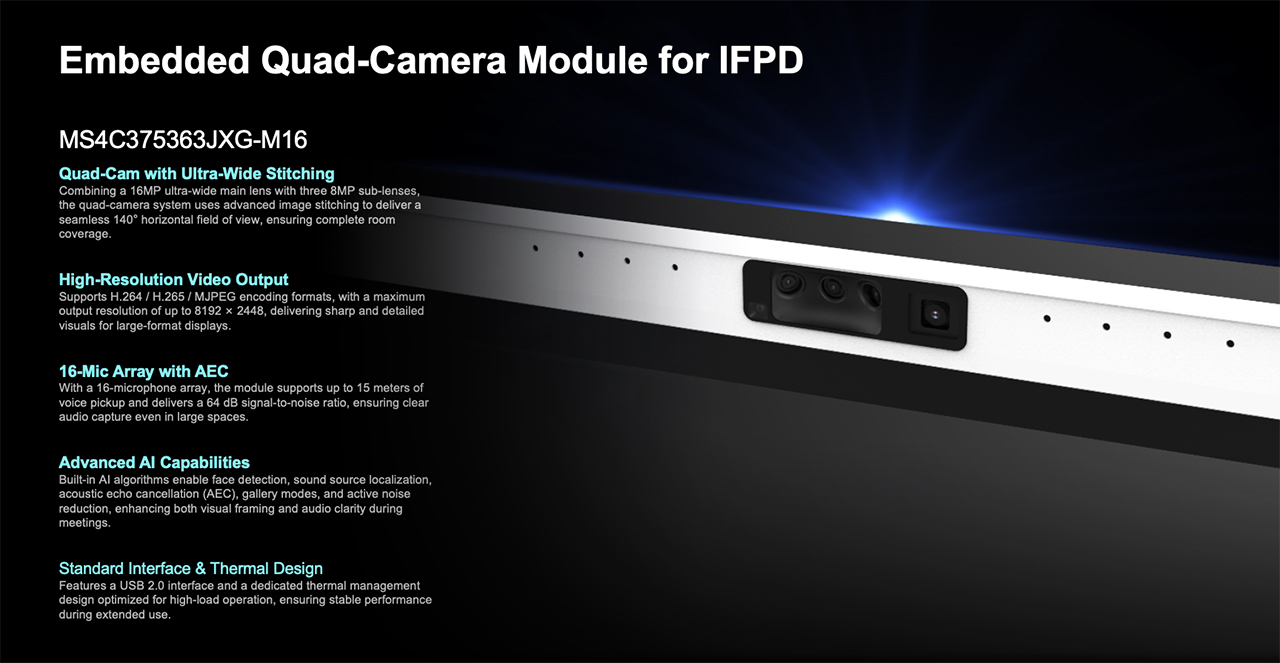

MS4C375363JXG-M16 is a quad-lens AI camera module designed specifically for Interactive Flat Panels, targeting smart meeting and classroom applications.
With a 140° ultra-wide field of view and a 16-microphone array supporting up to 15 m voice pickup, it delivers full-room coverage with clear video and audio.
Featuring face tracking, voice tracking, and gallery modes, the system intelligently adapts framing to different collaboration scenarios.
Support for MJPEG / H.264 / H.265 ensures seamless integration with IFPD platforms and conferencing systems.

Quad-Lens AI-Powered Camera

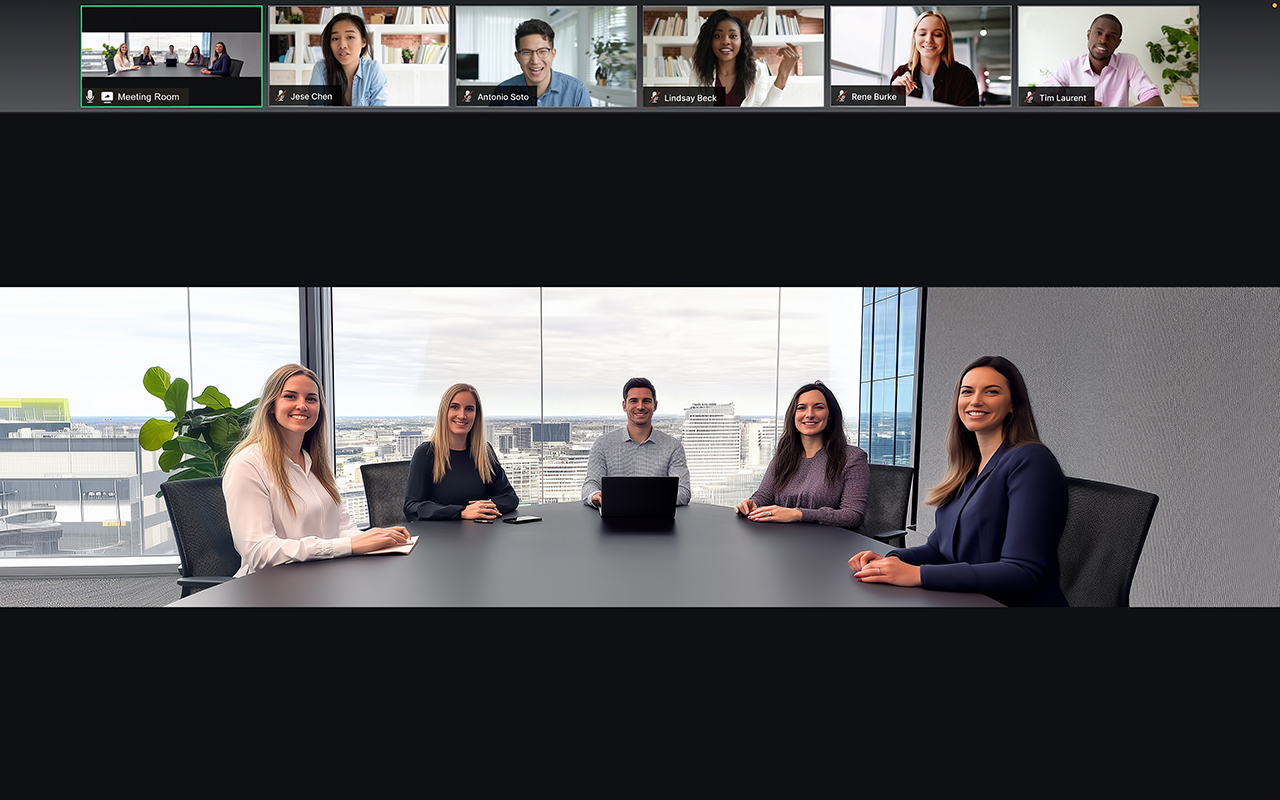

Provides an ultra-wide 140° field of view with seamless stitching technology for full-room visibility, while the ViiCap Camera Control app offers multiple Dynamic Gallery Mode settings, ensuring every participant is clearly seen and heard for a truly immersive learning and meeting experience.

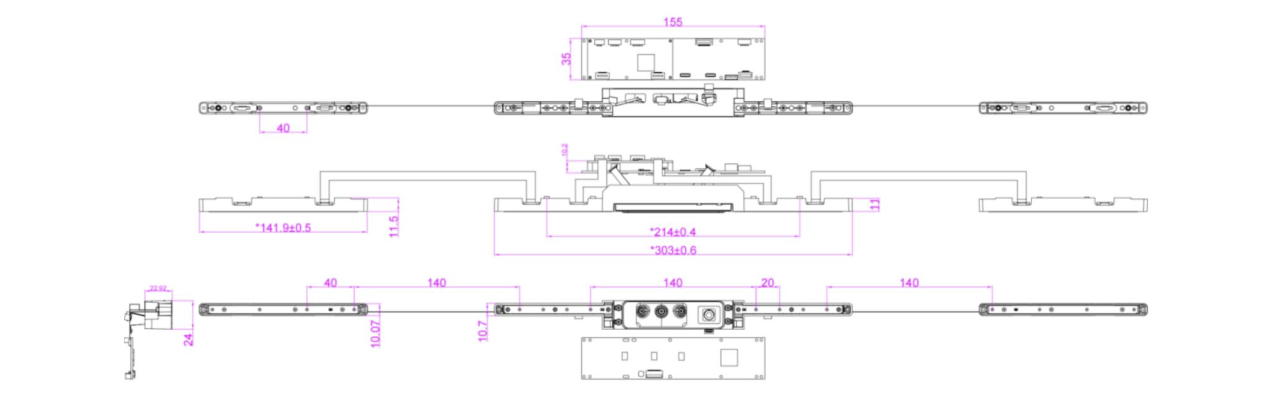

Mechanical Drawing

Operating Voltage	12V
Operating Current	2A
Frequency	50Hz
Interface	USB 2.0
Wide‑angle lens resolution	13M
Left / normal / right lens resolution	8M x 3
Max stitched ultra‑wide resolution	16MP
Video Formats	MJPG / H.264 / H.265 / YUY2
Ultra-wide angle resloution	MJPG: 8192 × 2448 @ 15 fps 8192 × 2048 @ 8 fps 4208 × 3120 @ 8 fps 5120 × 2160 @ 8 fps 3840 × 2160 @ 8 fps 3264 × 2448 @ 8 fps 3440 × 1440 @ 9 fps 2560 × 1440 @ 9 fps 2560 × 1080 @ 9 fps 1920 × 1080 @ 9 fps 1720 × 720 @ 9 fps 1280 × 720 @ 9 fps 640 × 480 @ 9 fps 640 × 360 @ 9 fps 320 × 180 @ 9 fps H.264 / H.265: 5120 × 2160 @ 3 fps 3840 × 2160 @ 5 fps 3264 × 2448 @ 5 fps 3440 × 1440 @ 9 fps 2560 × 1440 @ 9 fps 2560 × 1080 @ 9 fps 1920 × 1080 @ 9 fps 1720 × 720 @ 9 fps 1280 × 720 @ 9 fps 640 × 480 @ 9 fps 640 × 360 @ 9 fps 320 × 180 @ 9 fps
Wide angle resloution	MJPG: 8192 × 2448 @ 7 fps 8192 × 2048 @ 7 fps 4208 × 3120 @ 7 fps 5120 × 2160 @ 7 fps 3264 × 2448 @ 7 fps 3840 × 2160 @ 15 fps 3440 × 1440 @ 15 fps 2560 × 1440 @ 15 fps 2560 × 1080 @ 15 fps 1920 × 1080 @ 15 fps 1720 × 720 @ 15 fps 1280 × 720 @ 15 fps 640 × 480 @ 15 fps 640 × 360 @ 15 fps 320 × 180 @ 15 fps H.265: 5120 × 2160 @ 7 fps 3264 × 2448 @ 7 fps 3840 × 2160 @ 15 fps 3440 × 1440 @ 15 fps 2560 × 1440 @ 15 fps 2560 × 1080 @ 15 fps 1920 × 1080 @ 15 fps 1720 × 720 @ 15 fps 1280 × 720 @ 15 fps 640 × 480 @ 15 fps 640 × 360 @ 15 fps 320 × 180 @ 15 fps H.264: 5120 × 2160 @ 1 fps 3840 × 2160 @ 5 fps 3264 × 2448 @ 3 fps 3440 × 1440 @ 8 fps
Left camera/normal camera/right camera resloution	MJPG： 8192 × 2448 @ 18 fps 8192 × 2048 @ 21 fps 4208 × 3120 @ 21 fps 5120 × 2160 @ 30 fps 3840 × 2160 @ 30 fps 3264 × 2448 @ 30 fps 3440 × 1440 @ 30 fps 2560 × 1080 @ 30 fps 1920 × 1080 @ 30 fps 1720 × 720 @ 30 fps 1280 × 720 @ 30 fps 640 × 480 @ 30 fps 640 × 360 @ 30 fps 320 × 180 @ 30 fps H.264 / H.265： 5120 × 2160 @ 7 fps (H.265 / H.264) 3840 × 2160 @ 10 fps (H.264) 3264 × 2448 @ 10 fps (H.264) 3440 × 1440 @ 16 fps (H.264) 2560 × 1440 @ 22 fps (H.264) 2560 × 1080 @ 30 fps 1920 × 1080 @ 30 fps 1720 × 720 @ 30 fps 1280 × 720 @ 30 fps 640 × 480 @ 30 fps 640 × 360 @ 30 fps 320 × 180 @ 30 fps YUY2： 1280 × 720 @ 10 fps 640 × 480 @ 30 fps 320 × 240 @ 30 fps
Auto White Balance	Supported
Auto Exposure	Supported
Settings Memory	Supported
Focus Mode	Fixed Focus (FF)
Microphone Array	16 microphones
Pickup Range	Up to 15 meters
Signal-to-Noise Ratio (SNR)	64 dB(A)
Sensitivity	-26dbFS
AOP (Acoustic Overload Point)	120 db SPL
Sampling Rate	48KHz-16KHz
Indicator Light	White LED
AI Functions	Face Tracking Voice Localization Gallery Mode Echo Cancellation Picture-in-Picture (PiP) Image Stitching
Electronic PTZ	Supported
Camera Presets	Supported
Field of View (D)	Ultra-wide angle: HFOV:140°±3° Wide angle: D146 H122 V95 ±3°
TTL	6.07±0.15mm
Effective Focal Length	1.66mm±5%
F-Number (Infinite)	2.4±5%
Focusing Distance	0.5m
