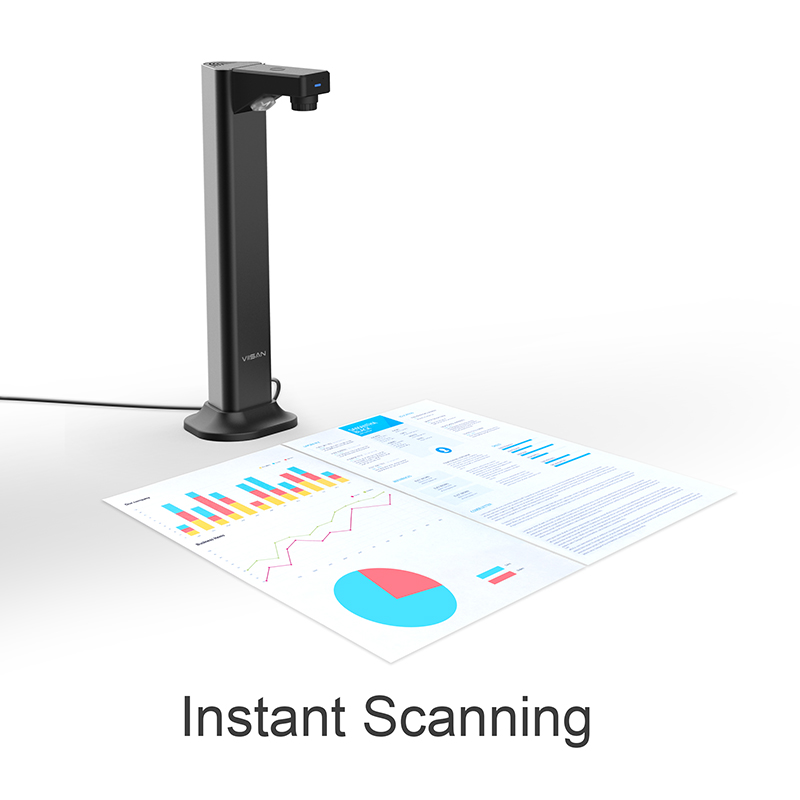

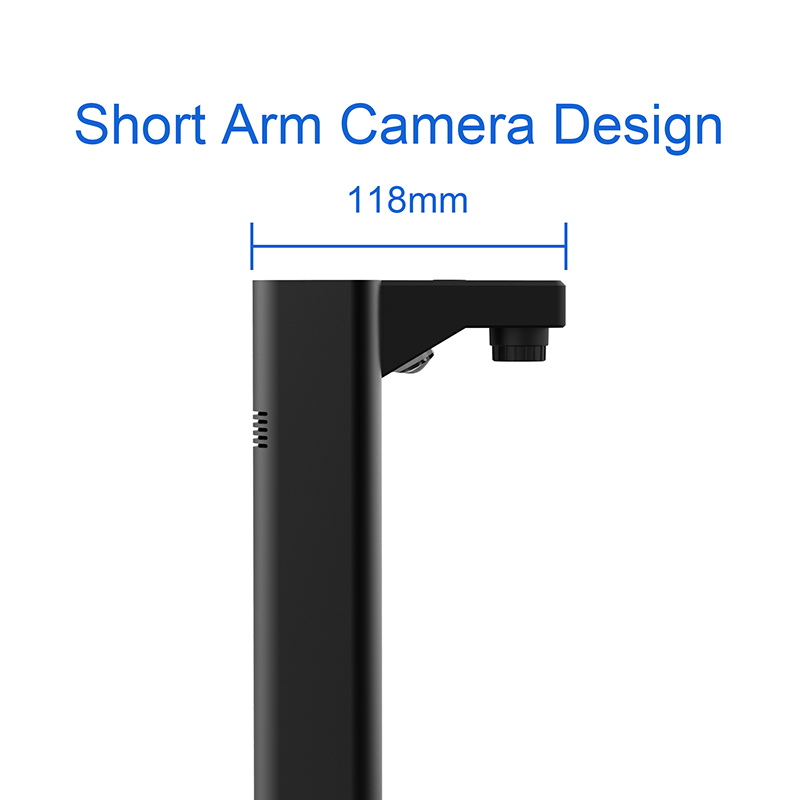

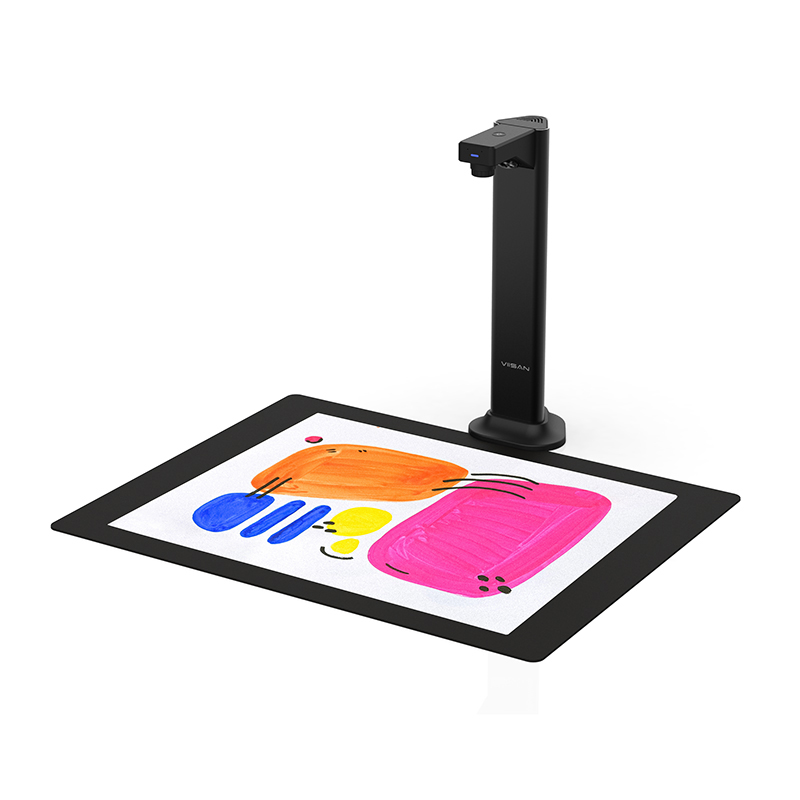

The brand-new DL8 is an innovative document camera with asymmetric lighting technology, plus an unique short-arm design. Streamlined to include only essential functionality, it features an ultra-high resolution camera with 1080P video output and a high-brightness LED. Unlike other document cameras, the DL8 features desktop cropping technology that enables the pick-up of content materials up to A3 landscape size without an additional black scan mat.

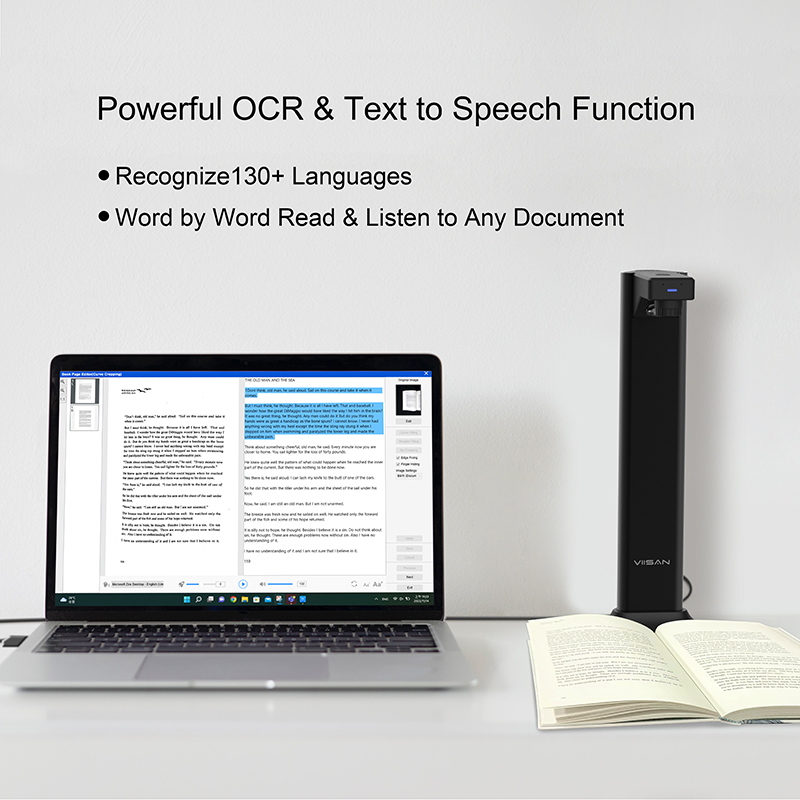

(NOTE: The Text-To-Speech function is only available on the Windows version software)


| Max. Output Resolution | Optical: 3264 (H) x 2448 (V) pixels (8MP) Software Interpolation: 4208 (H) x 3156 (V) pixels (13MP) |
|---|---|
| F. No. | 4.0 |
| Max. Video Frame Rate | 1920 x 1080@25fps 1600 x 1200@30fps |
| Focus | Fixed focus |
| Zoom | 3X digital zoom by using the software |
| Max. Shooting Area | A3, 420 x 297 mm, 16.5 x 11.7 inch |
| Color bit depth | 24-bit |

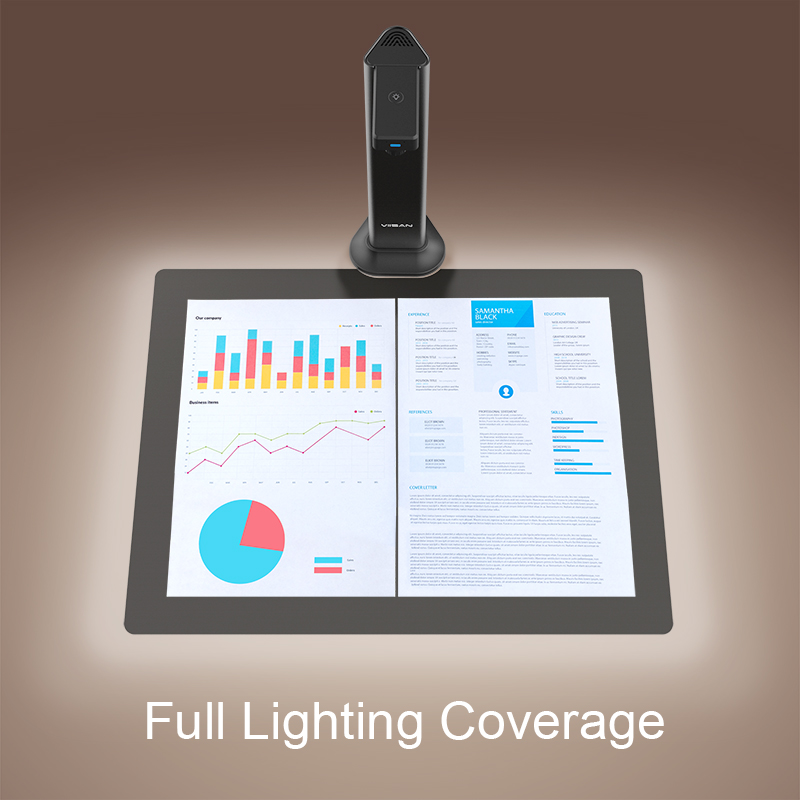

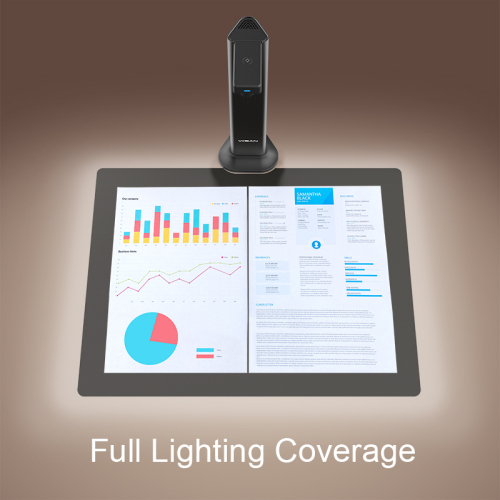

| Built-in LED | 3-level control LED light by Asymmetrical lighting technology |
| Status-LED | Power on: Blue-light |
| Video Compression | MJPG, YUY2 |
| Output Format | Picture: JPG, TIFF, BMP, PNG Document: PDF(Image), PDF (Searchable), PDF (Text), Excel, WORD, TEXT, MP3 Video: AVI, MPEG, FLV, WMV |
| Microphone | Built-in |
| Interface | USB 2.0 Type-C x 1 (For PC Connection) USB 2.0 Type-A x 1 (For USB Extension) |
| Power | 5V by USB power |
| Dimension | 118 (L) x 98 (W) x 305 (H) mm |
| Net Weight | Approx. 1kg |
